About INCLINED CLEATED BELT CONVEYOR
An

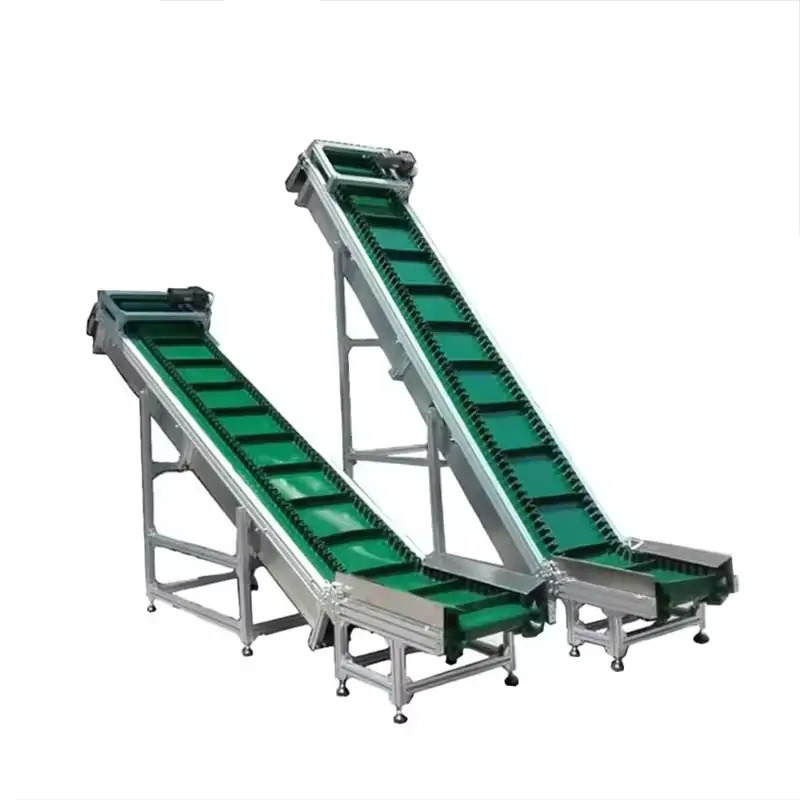

Inclined Cleated Belt Conveyor is engineered specifically to transport loose parts, bulk materials, or packaged goods up steep inclines. The integrated cleats (or flights) act as barriers that prevent material from sliding or rolling backward during elevation.
Short Engineering Specification
| Parameter |
Specification / Material Options |
| Conveyor Type |
Inclined Cleated Belt (Available in Straight, L-shape, or Z-shape configurations) |
| Frame Construction |
Heavy-duty Formed Mild Steel (Powder Coated) or Stainless Steel (Grade 304/316 for food/pharma) |
| Belt Material |
PVC, PU (Food Grade), or Heavy-Duty Rubber (depending on application) |
| Cleat Profile |
T-Cleat, C-Cleat (Scoop), or I-Cleat; height typically ranges from 20mm to 75mm+ |
| Cleat Pitch |
Custom spaced based on product size and volume requirements |
| Incline Angle |
Typically 20 to 45 (Up to 60+ when paired with corrugated sidewalls) |
| Drive System |
Top-mounted / Under-slung Geared Motor or Motorized Pulley |
| Support Structure |
Fixed height or Adjustable Floor Supports; available with locking casters for mobility |
| Side Guards |
Integrated sheet metal side guides to prevent product spillage |
Key Design Tip: For steep angles (greater than 45), it is highly recommended to specify corrugated sidewalls alongside the cleats. This creates completely enclosed pockets, sealing the edges and eliminating side spillage entirely.
Versatile and Customizable Transport SolutionThe Inclined Cleated Belt Conveyor stands out for its adaptable design, making it suitable for a wide variety of industries. With flexible options like adjustable cleat height and configurable belt width, these conveyors easily accommodate bulk handling, packaging, and specialized applications. Accessories such as hoppers, chutes, and guard hoods further enhance performance and safety, allowing users to tailor each conveyor to their unique process requirements.
Reliable Construction and Easy MaintenanceBuilt with a modular frame available in mild steel or stainless steel 304, the conveyor offers long-term durability and corrosion resistance. The use of oil/grease resistant PVC, PU, or rubber belts-available in multiple colors and thicknesses-ensures reliable performance under demanding conditions. The system is designed for minimal maintenance, and ready-to-assemble components make installation straightforward, reducing downtime and operational disruptions.
FAQ's of INCLINED CLEATED BELT CONVEYOR:
Q: How do I select the appropriate cleat height and belt width for my application?
A: Choosing the right cleat height and belt width depends on the material type, volume, and desired transfer angle. Cleat heights between 30 mm and 100 mm help contain diverse materials, while belt widths from 300 mm to 1500 mm support various throughput requirements. Our team can assist in configuring the best options based on your operational needs.
Q: What are the benefits of using an inclined cleated belt conveyor with a variable frequency drive (VFD)?
A: Integrating a VFD allows for precise belt speed adjustment, enhancing control over material flow and productivity. This adaptability ensures smooth handling of different materials and operational scenarios, while also improving energy efficiency and extending belt life.
Q: When is a custom conveyor length or specific inclination angle necessary?
A: Custom lengths or angles are ideal when standard dimensions do not align with spatial constraints or unique process requirements. We accommodate requests for bespoke conveyor dimensions and inclination angles (up to 60) based on your application's material characteristics and elevation needs.
Q: Where can the inclined cleated belt conveyor be installed, and what are its foundation requirements?
A: The conveyor is designed for ready assembly with minimal foundation needs, making it suitable for integration into existing plants or new installations across industries. Adjustability in height and flexible support leg placement facilitate installation in spaces with uneven flooring or limited access.
Q: What safety features are included in the conveyor, and how do they enhance operational security?
A: Standard safety features include side rails or guards to prevent spillage, and an emergency stop switch for immediate shutdown. These measures help protect personnel and equipment, aligning with industry safety standards.
Q: How does the conveyor support different operating environments and materials?
A: With a working temperature range of -10C to +80C (belt dependent), resistant options for oil, grease, and corrosion, and robust structure choices in MS/SS, the conveyor performs reliably in diverse environments. Belt options in PVC, PU, or rubber optimize compatibility with various product types.
Q: What are the key advantages of using this conveyor system for material handling and packaging?
A: The system provides elevated transfer, adjustable speed and height, low maintenance, and quiet operation (<70 dB). Combined with customization options and fast installation, these features maximize efficiency, reduce labor, and improve process safety and cleanliness.
