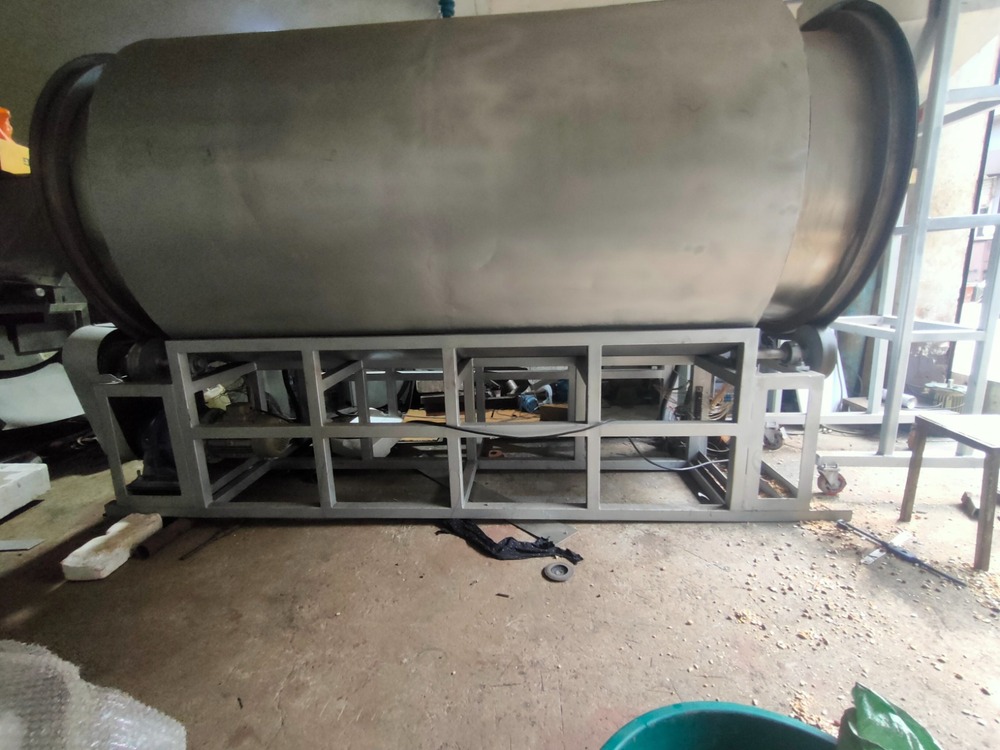

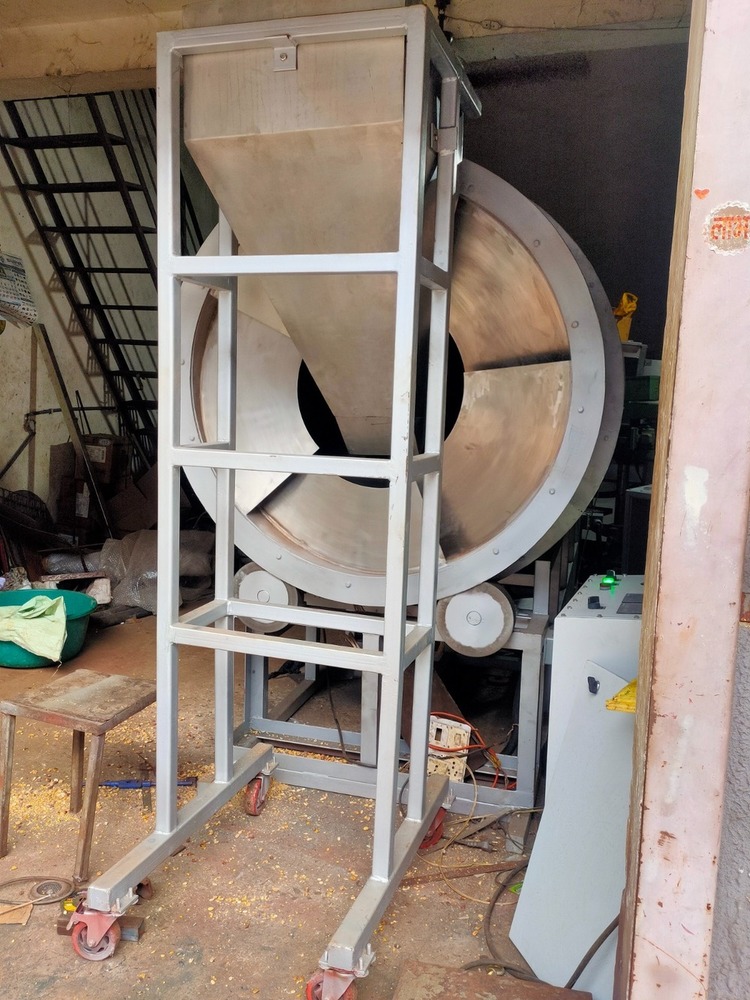

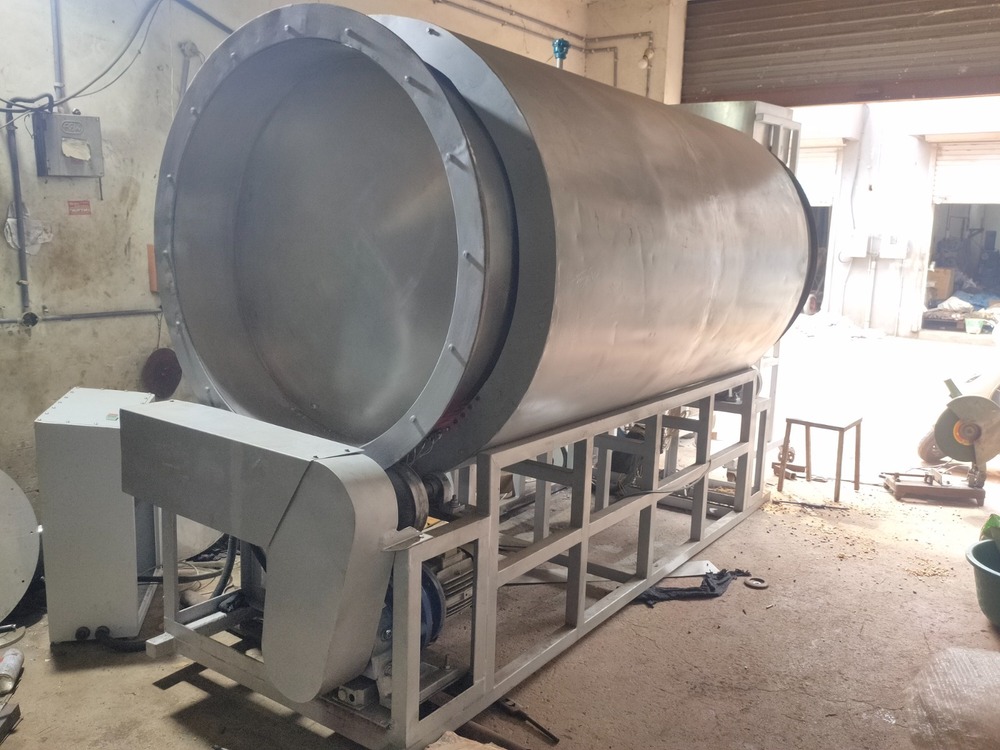

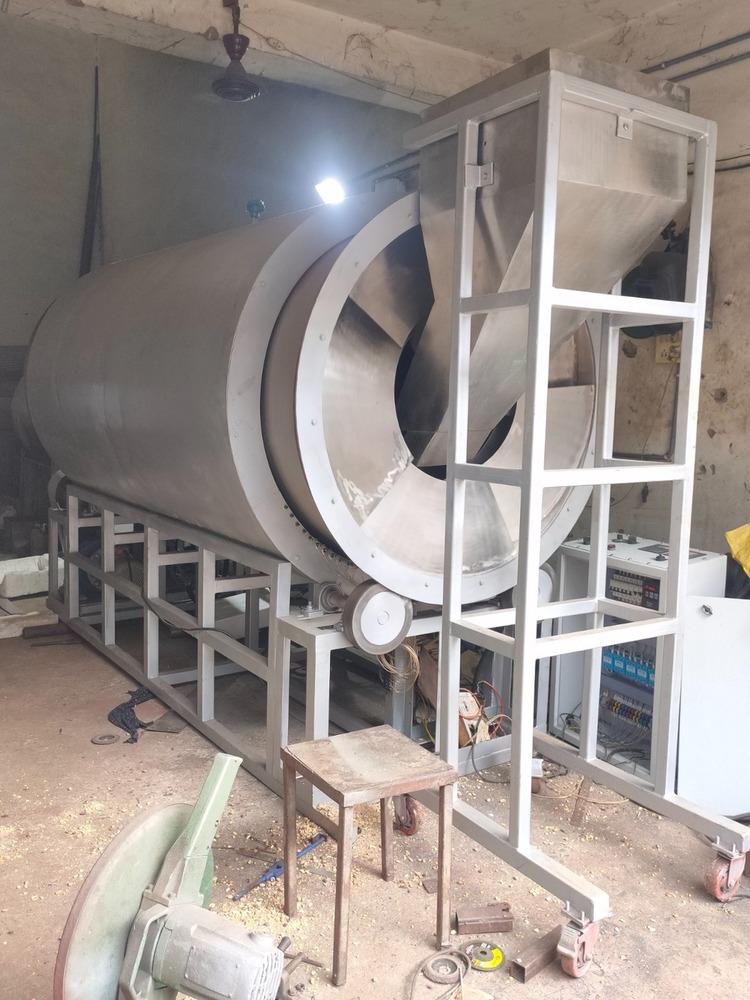

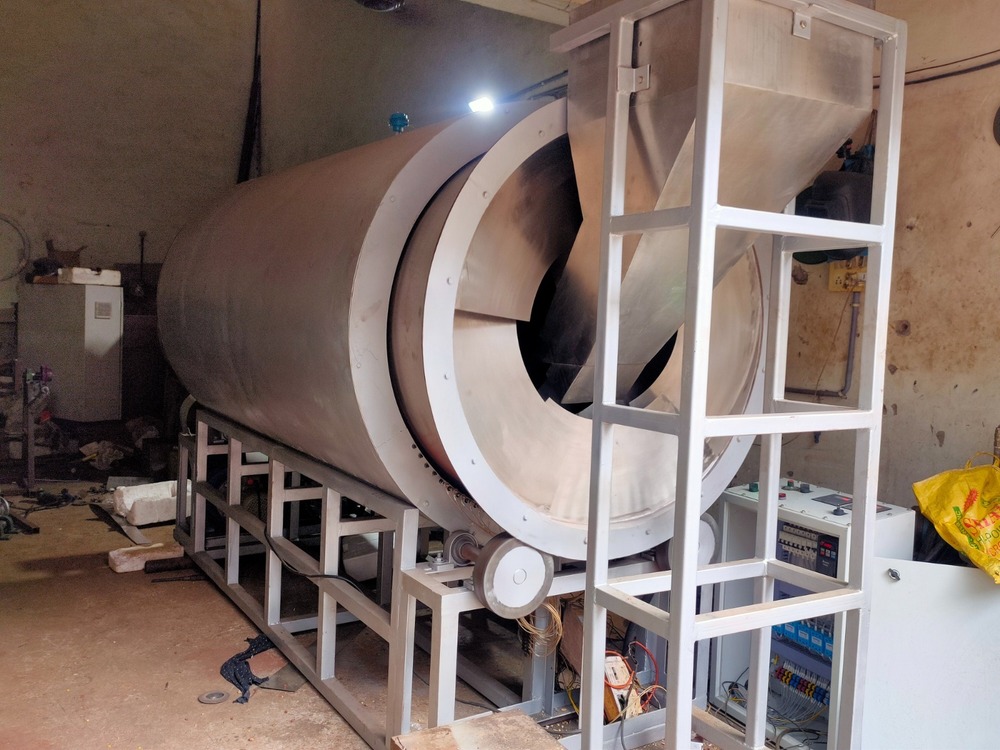

Drum Dryer

Drum Dryer About

1. Rotary Drum Dryer (Industrial - Most Common)

This is used for Sand, Biomass, Slag, Coal, Fertilizer, Mining.ParameterSpecificationCapacity0.5 - 50 T/HDrum Dia x Length0.6m x 8m to 3.0m x 25mInlet Temp400C - 800COutlet Temp50C - 80CDrum Speed3 - 8 RPM, AdjustableInclination3% - 5%Motor Power2.2 kW - 75 kWFuel TypeCoal, Gas, Diesel, BiomassMoisture RemovalFrom 40% to <1%MaterialMild Steel + Refractory Lining / SS304 optionalDriveGear Ring & Pinion, TexropeWeight4 - 105 TonStandard Models:ModelDiameter (mm)Length (m)Power (kW)Volume (m³)0.6—8-126008-122.241.2—12-18120012-1811-1513.31.5—12-18150012-1815-2221.22.2—12-22220012-2222-3070.42.8—15-24280015-2430-55147.8merhein.com

2. Double Drum Dryer (For Food / Chemical - Milk, Starch, Yeast)ParameterSpecificationTypeSingle Drum & Double DrumDrying Surface Area1.5 m² to 37.6 m²Drum Dia500mm, 1000mm, 1500mmDrum Length500mm to 4000mmDrum MaterialSS 316L, Mirror PolishedHeatingSteam 6-8 bar / Thermic OilDrum Speed1 - 15 RPM, VFD ControlledGap Adjustment0.1 - 1.5 mmScraperSS Knife with Pneumatic PressureApplicator Roll2 x 2 or 3 OptionalDrive Power4 kW - 100 kWFinal Moisture2% - 8%aaronequipment.com

3. General Construction Details

Internal Flights: Lifting plates for uniform heat transferSealing: Elastic wear-resistant steel sheet at head & tailInsulation: 50mm Ceramic wool with GI cladding to prevent heat lossControl Panel: PLC + HMI with Temperature, RPM, Feed controlSafety: Emergency stop, Temp alarm, Overload protectionIf you tell me:

What material you want to dry?Input Moisture % and Output Moisture %?Capacity required per hour?I can give you the exact model selection, power consumption, and price estimate.
